276 - air conditioner (engine room) (Denso) for Nissan Vanette Serena KVC23
| |||||||||||||||||||

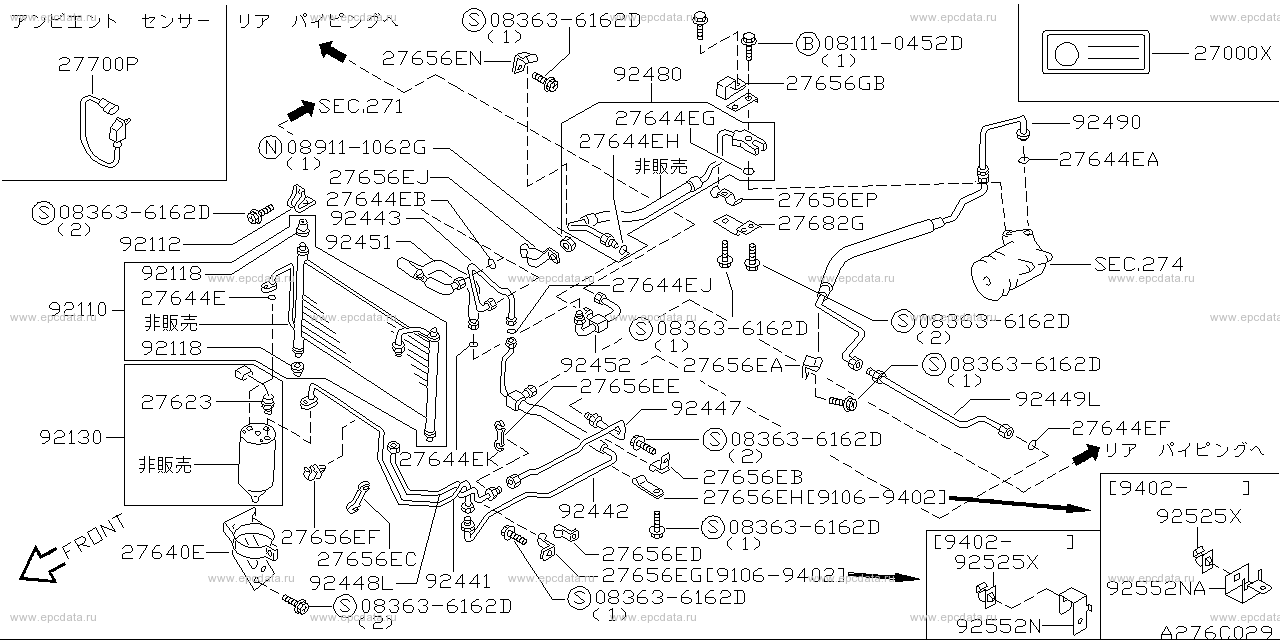

| Applies for models | Manufacture period | Spec |
|---|---|---|
| W.CD20T | 05.1994 - 01.1997 | フロント パイピング |

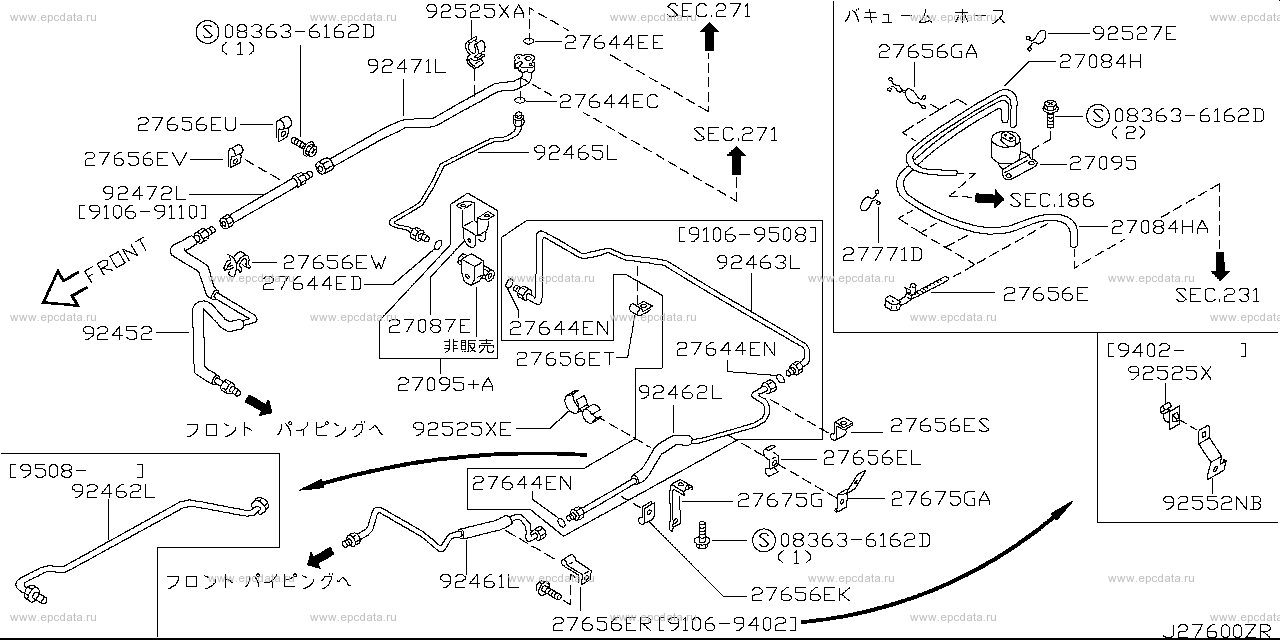

| Applies for models | Manufacture period | Spec |
|---|---|---|
| W.CD20T | 05.1994 - 01.1997 | リヤ パイピング |
| 083636162D 27084H - hose, vacuum 27084HA - hose, vacuum 27087E - bracket, vacuum switch 27095 - valve, vacuum magnet 27095+A - valve, vacuum magnet 27644EC - seal,O ring 27644ED - seal,O ring 27644EE - seal,O ring 27644EN - seal,O ring 27656E - clip 27656EK - clip 27656EL - clip 27656ER - clip 27656ES - clip 27656ET - clip 27656EU - clip 27656EV - clip 27656EW - clip 27656GA - clip 27675G - bracket, clamp 27675GA - bracket, clamp 27771D - clamp 92452 - pipe, front cooler low 92461L - pipe assembly, rear cooler high A 92462L - pipe assembly, rear cooler high B 92463L - pipe assembly, rear cooler high C 92465L - pipe assembly, rear cooler high E 92471L - pipe assembly, rear cooler low A 92472L - pipe assembly, rear cooler low B 92525X - clip 92525XA - clip 92525XE - clip 92527E - clip 92552NB - bracket, tube clip |
| Applies for models | Manufacture period | Spec |
|---|---|---|

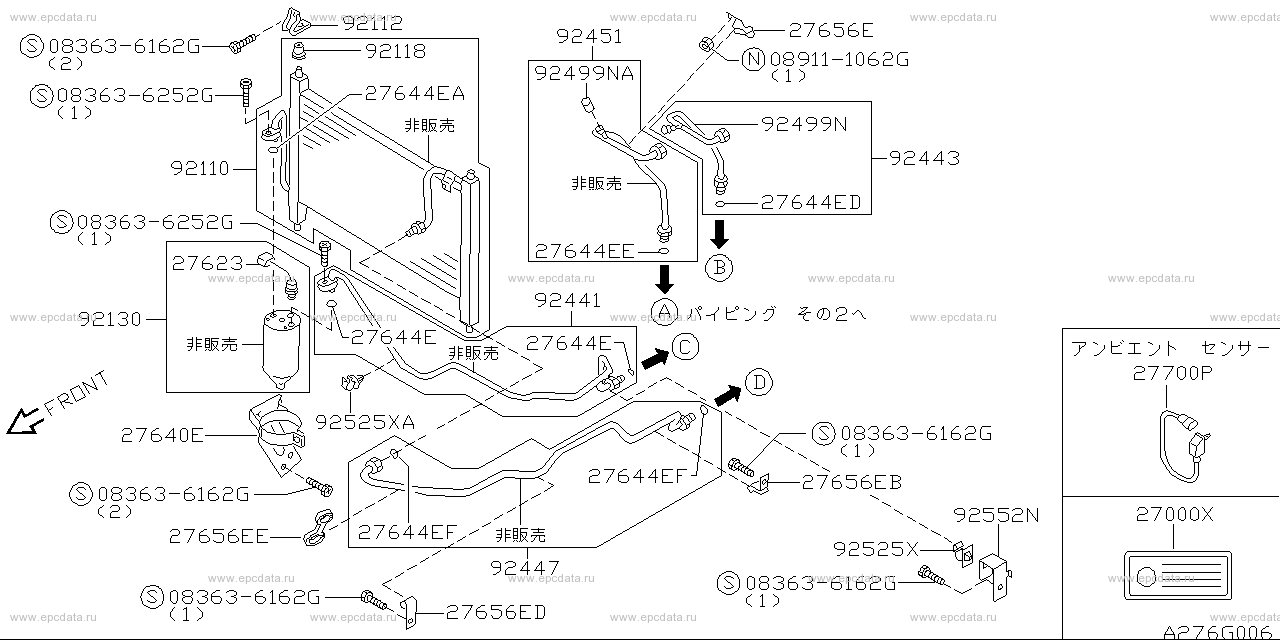

| W.CD20ET | 01.1997 - 01.1998 | フロント パイピング（その１） |
| W.CD20ET | 01.1998 - ... | フロント パイピング（その１） |
| 083636162G 083636252G 089111062G 27000X - label, air conditioner 27623 - switch assembly, pressure 27640E - bracket, liquid tank 27644E - seal,O ring 27644EA - seal,O ring 27644ED - seal,O ring 27644EE - seal,O ring 27644EF - seal,O ring 27656E - clip 27656EB - clip 27656ED - clip 27656EE - clip 27700P - sensor assembly, ambient 92110 - condenser assembly 92112 - bracket assembly, condenser 92118 - mounting, condenser 92130 - tank assembly, liquid 92441 - pipe, front cooler high A 92443 - pipe, front cooler high C 92447 - pipe, compressor & condenser 92451 - pipe, front cooler low A 92499N - cap, charge valve 92499NA - cap, charge valve 92525X - clip 92525XA - clip 92552N - bracket, tube clip |
| Applies for models | Manufacture period | Spec |
|---|---|---|

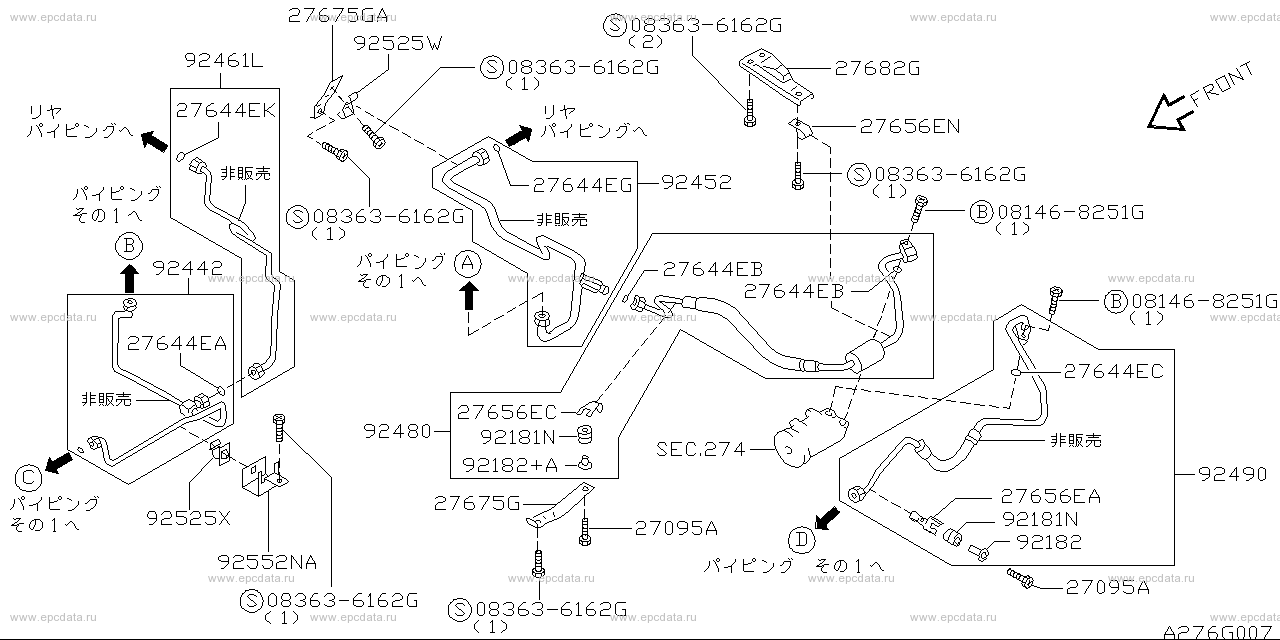

| W.2WD.CD20ET | 01.1997 - 01.1998 | フロント パイピング（その２） |
| W.2WD.CD20ET | 01.1998 - ... | フロント パイピング（その２） |
| 081468251G 083636162G 27095A - screw 27644EA - seal,O ring 27644EB - seal,O ring 27644EC - seal,O ring 27644EG - seal,O ring 27644EK - seal,O ring 27656EA - clip 27656EC - clip 27656EN - clip 27675G - bracket, clamp 27675GA - bracket, clamp 27682G - bracket, hose clamp 92181N - isolator 92182 - bush 92182+A - bush 92442 - pipe, front cooler high B 92452 - pipe, front cooler low 92461L - pipe assembly, rear cooler high A 92480 - hose, flexible low 92490 - hose, flexible high 92525W - clip 92525X - clip 92552NA - bracket, tube clip |
| Applies for models | Manufacture period | Spec |
|---|---|---|

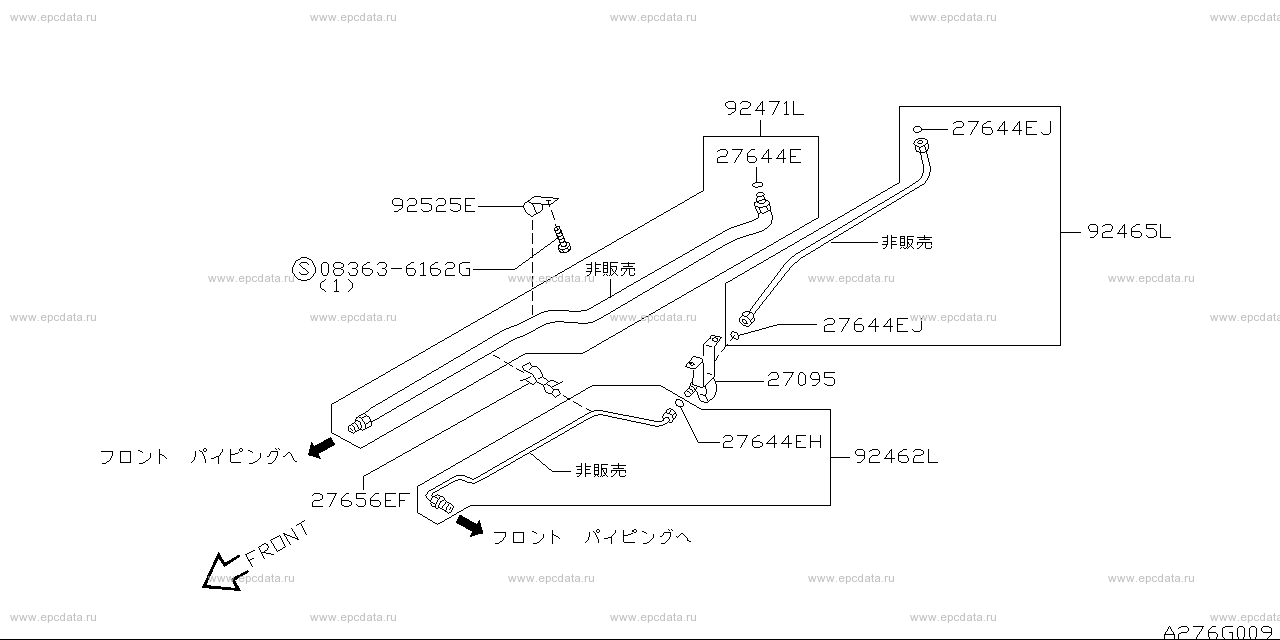

| W.CD20ET | 01.1997 - 01.1998 | リヤ パイピング |
| W.CD20ET | 01.1998 - ... | リヤ パイピング |
| 083636162G 27095 - valve, vacuum magnet 27644E - seal,O ring 27644EH - seal,O ring 27644EJ - seal,O ring 27656EF - clip 92462L - pipe assembly, rear cooler high B 92465L - pipe assembly, rear cooler high E 92471L - pipe assembly, rear cooler low A 92525E - clip |
